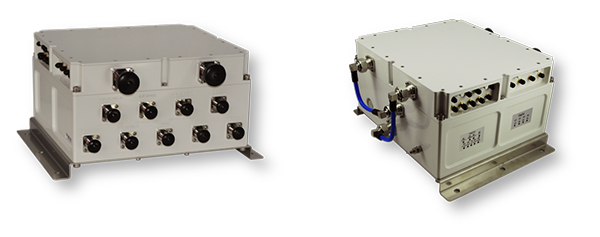

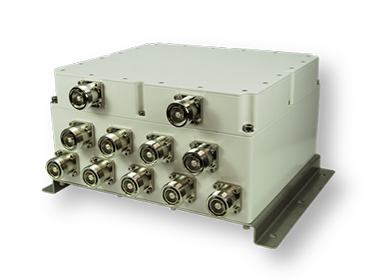

Product description

Nowadays, mobile communication is rapidly developing, which brings great challenge to the wireless coverage for multi-system for the operators. The operators must consider how to ensure equivalent capacity and coverage, no interference between each system during coverage for 2G/3G/4G. A cost-effective solution of point of interface (POI) is undoubtedly the best choice for the operators. Based on years of practical experience and summing up the shortcomings of the traditional POI, Hexagon developed and released this product for the 9 in 2 out POI project of China Tower. It's realized on the same metal case to minimize the requirement of cable connection inside. It adopts all in one architecture with compact size, easy to install with light weight. Low insertion loss and PIM with high isolation between each system. It completely meet with China Tower's requirements. Because of high integration, it's more suitable to batch production than traditional POI, and it's obviously improved production efficiency and product consistency. Furthermore, the POI is more stable and reliable with few cable connection inside.

Main Features
✪ All in one architecture with compact size
✪ Cost-effective and good consistency with diecasting technology
✪ Easy to install with light weight
✪ More stable and reliable performance with few cable connection inside
✪ Low insertion loss
✪ High isolation between each system
✪ Low PIM as -150dBc maximum
✪ Advanced coating process with stable performance of weatherproofing and corrosion resistance
✪ Available for all indoor and outdoor applications as IP66
✪ Connectors: N type female or DIN type female optional
✪ Applications: wireless base station, Indoor DAS, metro coverage etc.


Electrical Specifications

Input Ports	Tx/Rx Frequency Range
China Mobile GSM900	934-960MHz/889-915MHz
China Mobile GSM1800	1805-1830MHz/1710-1735MHz
China Mobile TD-LTE (F-band)	1885-1915MHz
China Mobile TD-LTE (E-band)	2320-2370MHz
China Telecom CDMA800	865-880MHz/820-835MHz
China Telecom LTE FDD1.8G	1860-1880MHz/1765-1785MHz
China Telecom LTE FDD2.1G	2110-2130MHz/1920-1940MHz
China Unicom GSM1800/LTE FDD1.8G	1830-1860MHz/1735-1765MHz
China Unicom WCDMA2100	2130-2170/1940-1980MHz
Power Handling	200W per BTS TRx port
Amount of Input Ports	9
Amount of Output Ports	2
Insertion Loss	≤6.0dB
Ripple in Band	≤1.5dB
Isolation	≥25dB@CM GSM1800 and CU GSM1800/LTE FDD1.8G ≥50dB@between CM GSM1800 and CT LTE FDD1.8G ≥25dB@between CU GSM1800/LTE FDD1.8G and CT LTE FDD1.8G ≥25dB@between CU WCDMA2100 and CT LTE FDD2.1G ≥50dB@between CT LTE FDD1.8G and CM TD-LTE (F-band) ≥50dB@between CT LTE FDD2.1G and CM TD-LTE (F-band) ≥80dB@between other ports
VSWR	≤1.3
PIM	≤-150dBc@2x43dBm inputs
Impedance	50Ω

Mechanical Specifications

Weight	Approx. 13.8kgs
Dimensions	280mm * 250mm * 156mm
Connectors	DIN type female(input/output ports) N type female(input/output ports), optional SMA type female(monitor port)
Monitor Ports	9 input ports：40dB coupling, 2 output ports：35dB coupling for both forward and reverse
Colour	White
Operating Humidity	5-95%
Operating Temperature	-40 to 85ºC
Application	Indoor and outdoor
Mounting	Wall mount, or floor standing
Protection Grade	IP66

>> Note: Above specifications subject to change without notice. Please obtain latest specification from us before ordering.

Outline Drawing
