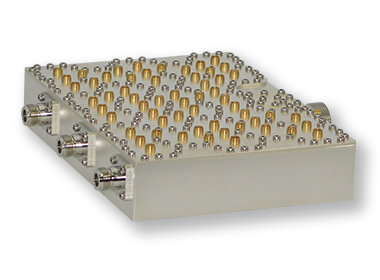

1800MHz Low PIM Duplexer

Product Type:

Product SN:670

Frequency Range:1710-1785/1805-1830/1845-1880MHz

Product description

Main Features
✪ Low insertion loss
✪ High isolation between each input port
✪ Low PIM as -168dBc@2x43dBm, typical -170dBc
✪ Available for indoor applications
✪ Connectors: N type or DIN type female
✪ Applications: PIM Testers or PIM Analyzers.

Electrical Specifications
Input Ports
Rx/Tx1/Tx2
Frequency Range
1710-1880MHz/1805-1830MHz/1845-1880MHz
Insertion Loss
Tx≤1.5dB, Rx≤1.2dB
Ripple
≤1.0dB
Power Handling
250W
Isolation
≥55dB (Tx1 to Tx2), ≥85dB (Tx to Rx)
Return Loss
≥20dB
Coupling
40±1dB
PIM
≤-168dBc@2x43dBm inputs, typical -170dBc@2x43dBm
Directivity
≥30dB
Impedance
50Ω

Mechanical Specifications
Weight
2.2Kgs
Dimensions
159mm * 215mm * 45mm
Connector
DIN type Female (Common port), N type Female (Rx, Tx1 & Tx2 port), SMA type Female (Coupling port)
Colour
Silver
Operating Humidity
5-95%
Operating Temperature
0 to 60ºC
Application
Indoor
Waterproof Grade
IP50

*Note: The specification subject to change without notice, please obtain latest specification from Hexagon before ordering.

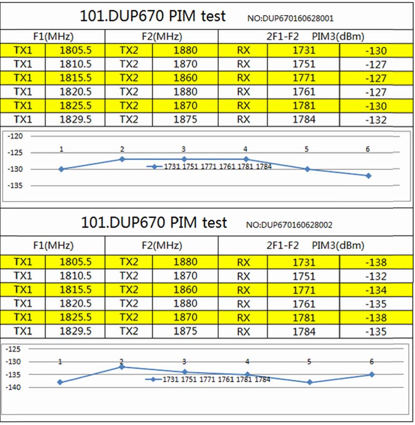

PIM Test Report
