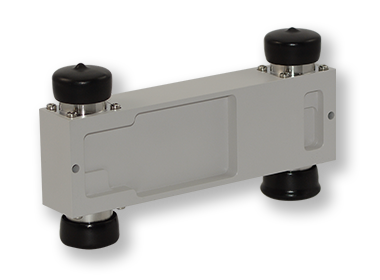

Product description

Nowadays, mobile communication is rapidly developing, which brings great challenge to the wireless coverage for multi-system for multi operators. The operators must consider how to ensure equivalent capacity and coverage, no interference between each system during coverage for 2G/3G/4G. For different frequency band, it's easy to ensure good isolation by combiners. However, for the same frequency band, the isolation mainly depends on the performance of Hybrid Couplers. A good solution of Hybrid Coupler is undoubtedly the best choice for the operators. Based on years of practical experience and summing up the shortcomings of the traditional Hybrid Coupler, Hexagon developed and released this product with high isolation as minimum 32dB.

Main Features

✪ Low insertion loss
✪ Low VSWR
✪ High isolation as minimum 32dB, typ. 35dB
✪ Low PIM as -160dBc maximum
✪ Available for all indoor and outdoor applications as IP65
✪ Connectors: DIN type female optional
✪ Applications: wireless base station, Indoor DAS, metro coverage etc.


Electrical Specifications

Product Type	2in2out Hybrid Coupler
Product Code	P3-0727DL
Part Number	148.3
Frequency Range	694-2700MHz
VSWR	≤1.15
Insertion Loss	≤3.01±0.3dB
Isolation	Min 32dB, Typ 35dB
Power Handling	500W/port
PIM	≤-160dBc@2x43dBm inputs
Impedance	50Ω

Mechanical Specifications

Weight	0.85kgs
Dimensions	172mm * 91mm * 35mm
Connectors	DIN type female
Colour	Grey or Customized
Operating Humidity	5-95%
Operating Temperature	-40 to 85ºC
Application	Indoor and outdoor
Mounting	Wall mount
Protection Grade	IP65

>> Note: Above specifications subject to change without notice. Please obtain latest specification from us before ordering.

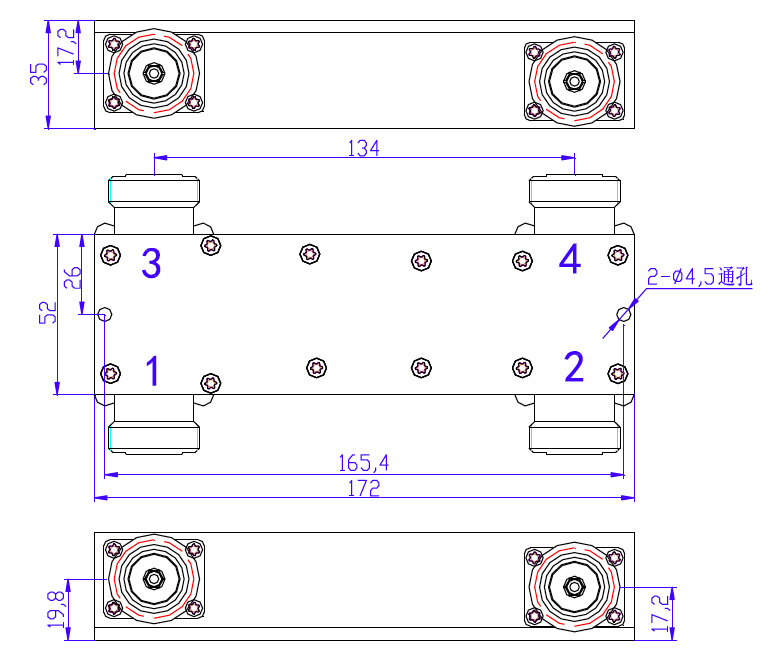

Outline Drawing
